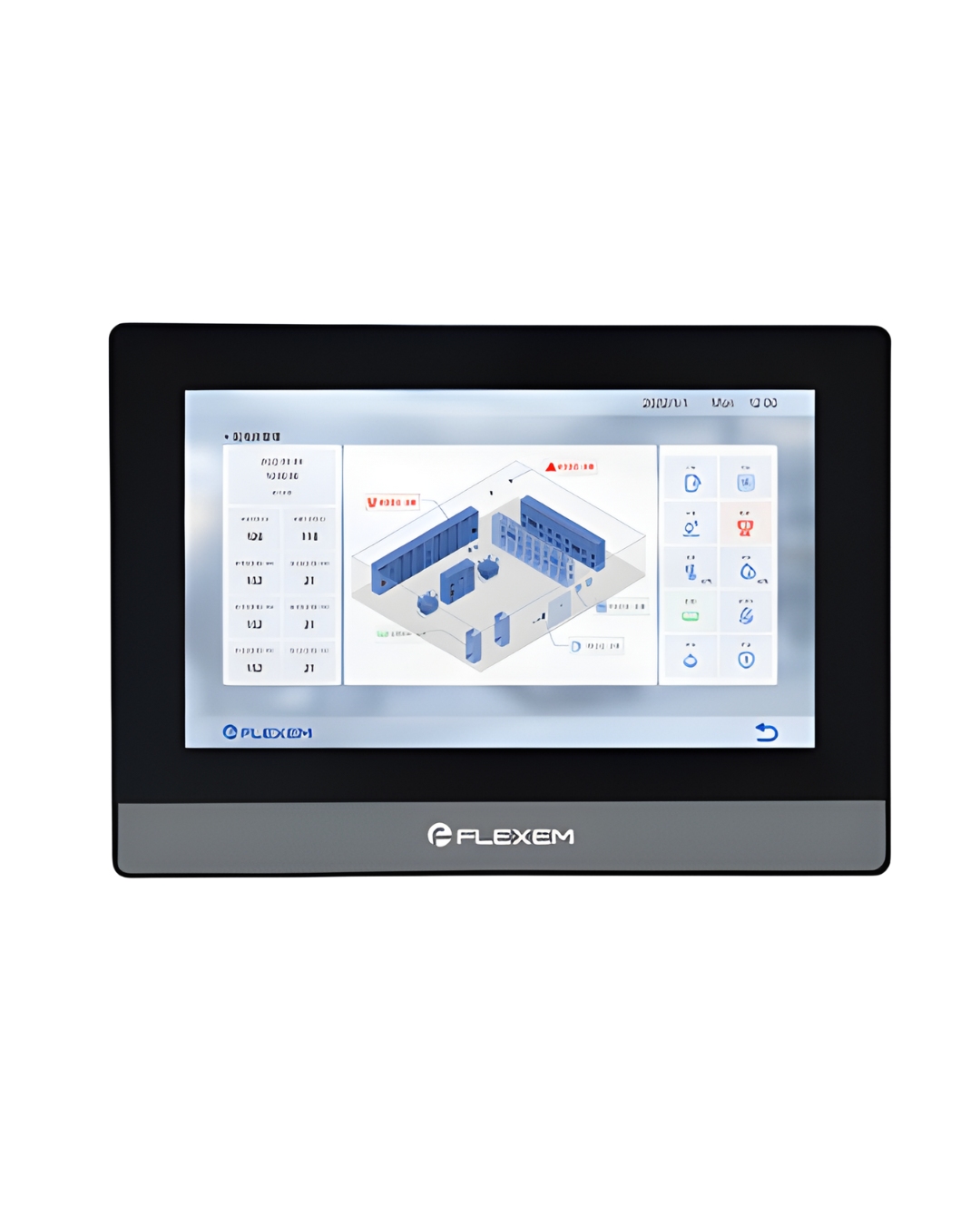

FE6370CE 7″ IoT HMI

FE6370CE is a 7″ resistive HMI with black frame. The touchscreen is 16:9 TFT LCD, featuring 800?480 resolution, 24-bit colors. FE6370CE adopts high-performance 1GHz dual core Cortex-A7 CPU, with 4GB storage and 1x Eth port. As a member in FE6300 series, it also supports 3000 tags. Pluggable Flink2 IoT module provides more flexile internet connectivity solutions.

Additional information

Specification

FEATURES	FE6370CE
Display	7″ 16:9 TFT LCD
LCD Viewing Angles(T/B/L/R)	50’/70’/70’/70′
Resolution	800×480
Colors	24-bit
Brightness	350 cd/m²
Backlight	LED
LCD Lifetime	50000 hours
Touch Panel	4-wire resistive touchscreen
CPU	1GHz, dual core Cortex-A7
Storage	4GB eMMC+256MB DDR3
RTC	Built-in
SD Card	NA
Ethernet port	1*RJ45, based on 10/100Mbps
USB Port	1USB Type-C 2.0 port, 1USB Type-A 2.0 port
Download Method	USB Slave Port/USB drive
Serial port	COM1: RS232/RS485/RS422, COM2: RS485, COM3: RS232
Rated power	<10W
Input Voltage	DC24V,Working range DC9V-28V
Power supply protection	With lightning surge protection
Power Interruption Tolerance	<5mS
Certification	CE, RoHS
Operating Temperature	0-50℃
StorageTemperature	-20-60℃
UV Resistance	Operating in high UV environment is prohibited
Environmental Humidity	10-90%RH (Non condensing)
Vibration Endurance	10-25Hz (X,Y,Z direction 2G/30 minutes)
Cooling Mode	Natural Cooling
Protection Level	Front:IP65, Rear:IP20
Enclosure Material	Engineering plastic, black
Cutout Size	190mm×136mm
Dimensions	204mm×145mm×36.6mm
Weight	About 476g
