FR Series Remote IO?Extension Module-D

Category:

Description

Specification

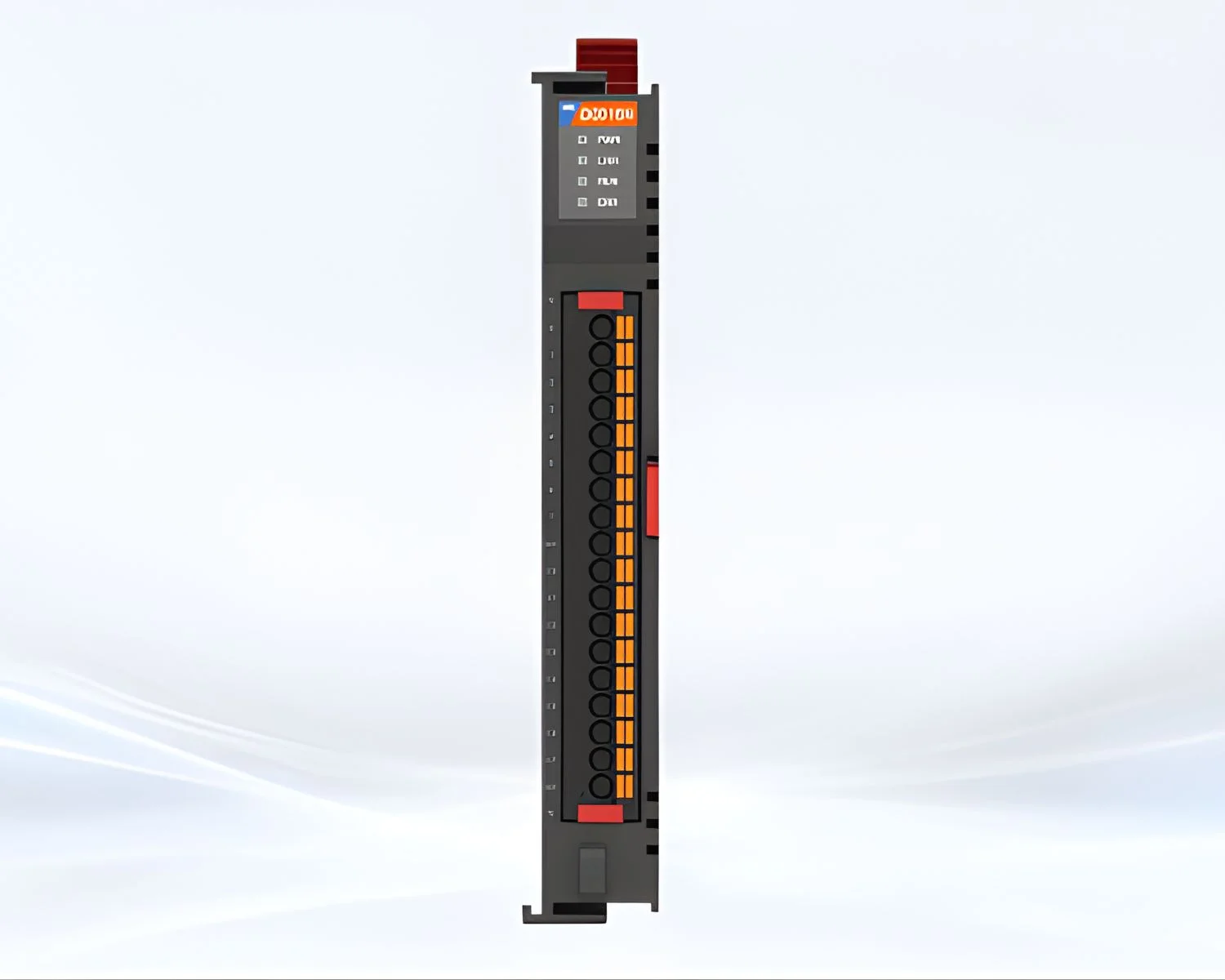

ModelFR-D0016N
Channel16-point NPN output
Indicator16 output indicators
Rated CurrentSingle channel output:Max.1000mA,Total output:Max.500mA
Leak CurrentMax:10μA
Output ImpedanceRate 500mΩ
Output DelayOFF to ON:Max.100μs,ON to OFF:Max.150μs
PowerMax.140mA@5.0Vdc
Installation35mmDIN ruler
Dimension(H*W*D)111*18*76
Weight65g

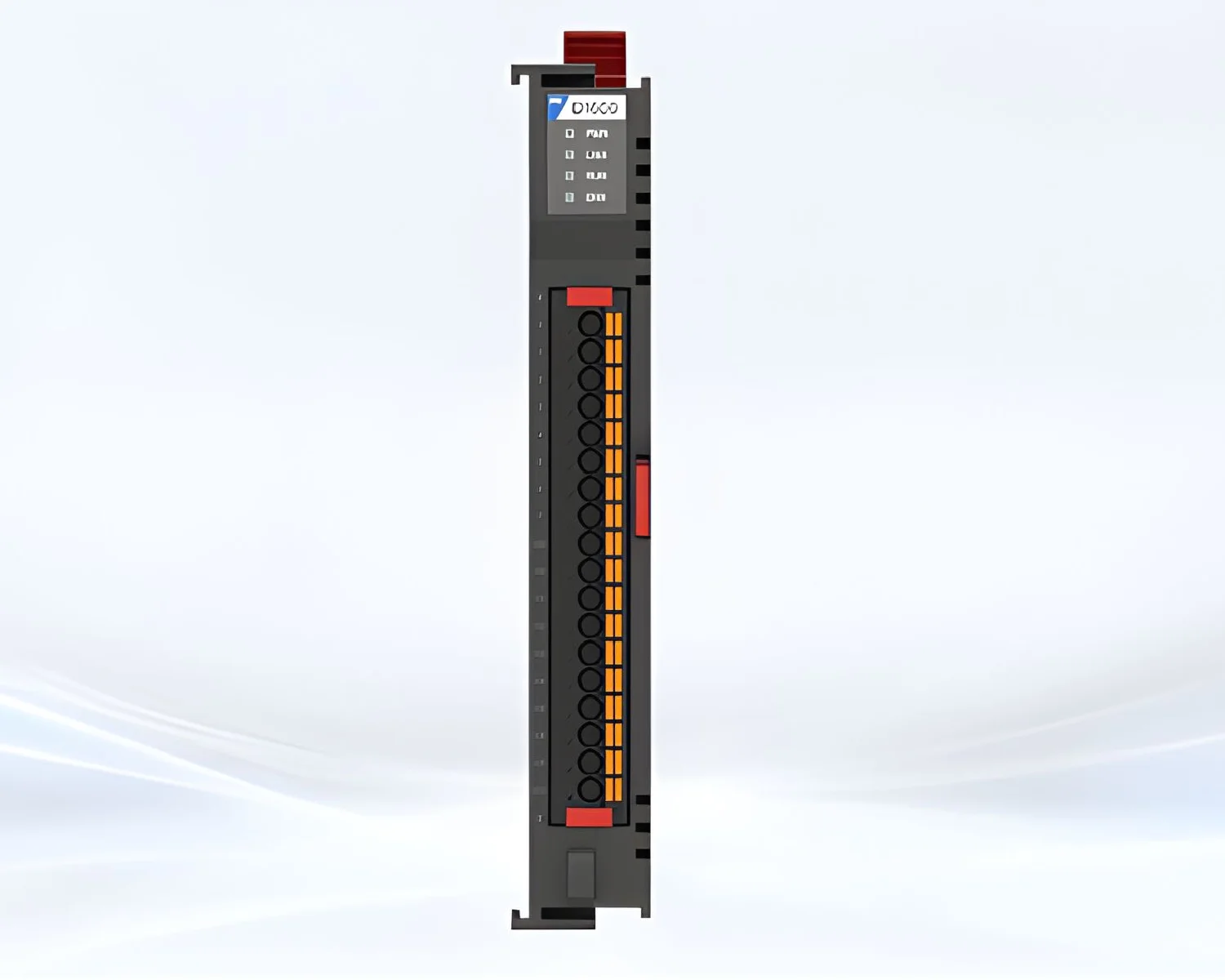

ModelFR-D1600
Channel16-point input
lndicator16 input indicators
ON VoltageMin.10Vdc to Max.28Vdc
OFF VoltageMax.5Vdc
ON CurrentMax.5mA/Channel@28V
Input Impedance>7.5kΩ
Input DelayOFF to ON:Max.3ms,ON to OFF:Max.2ms
PowerMax.60mA@5.0Vdc
Installation35mm DIN ruler
Dimension  (H*W*D)111*18*76
Weight65g

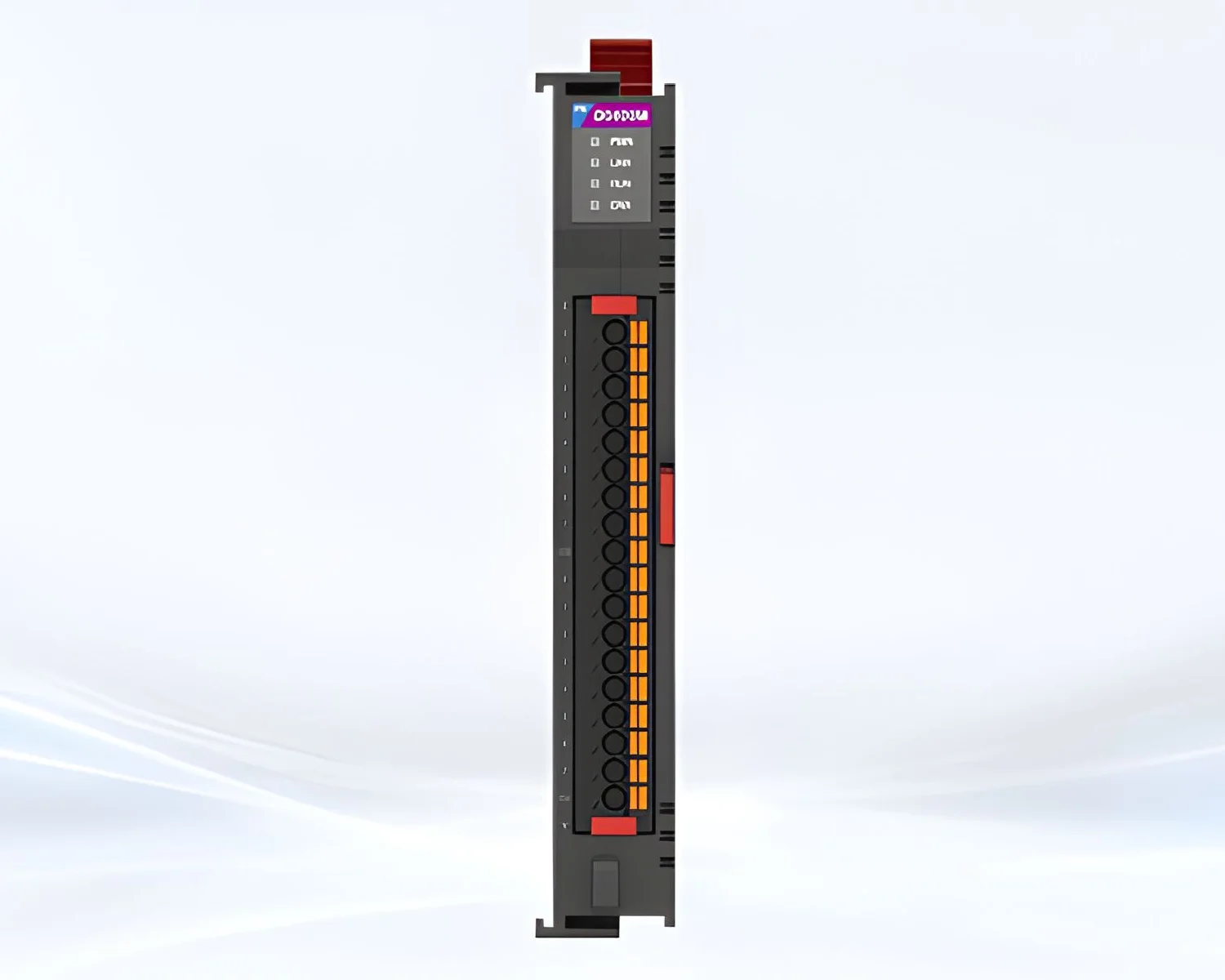

ModelFR-D0808N
Input Parameter
Channe8 point input
Indicator8 input Indicator
ON VoltageHigh input:Min.10Vdc to Max.28Vdc(com:0Vdc)Low input:Min.OVdc to Max.14Vdc(com:24Vdc)
OFF VoltageHigh input:Max.5Vdc(com:0Vdc)Low input:Min.19Vdc(com:24Vdc)
ON CurrentMax.5mA/Channel@28V
Input Impedance>7.5kΩ
Input DelayOFF to ON:Max.3ms ON to OFF:Max.2ms
Output Parameter
Channel8-point NPN output
Indicator8 output Indicators
Rated CurrentRate:500mA
Leak CurrentMax:10μA
Output Impedance<200mΩ
Output DelayOFF to ON:Max.100μs
ON to OFF:Max.150μs
PowerMax.85mA@5.0Vdc
Installation35mmDIN ruler
Dimension (H *W*D)111*18*76
Weight65g
