Specification

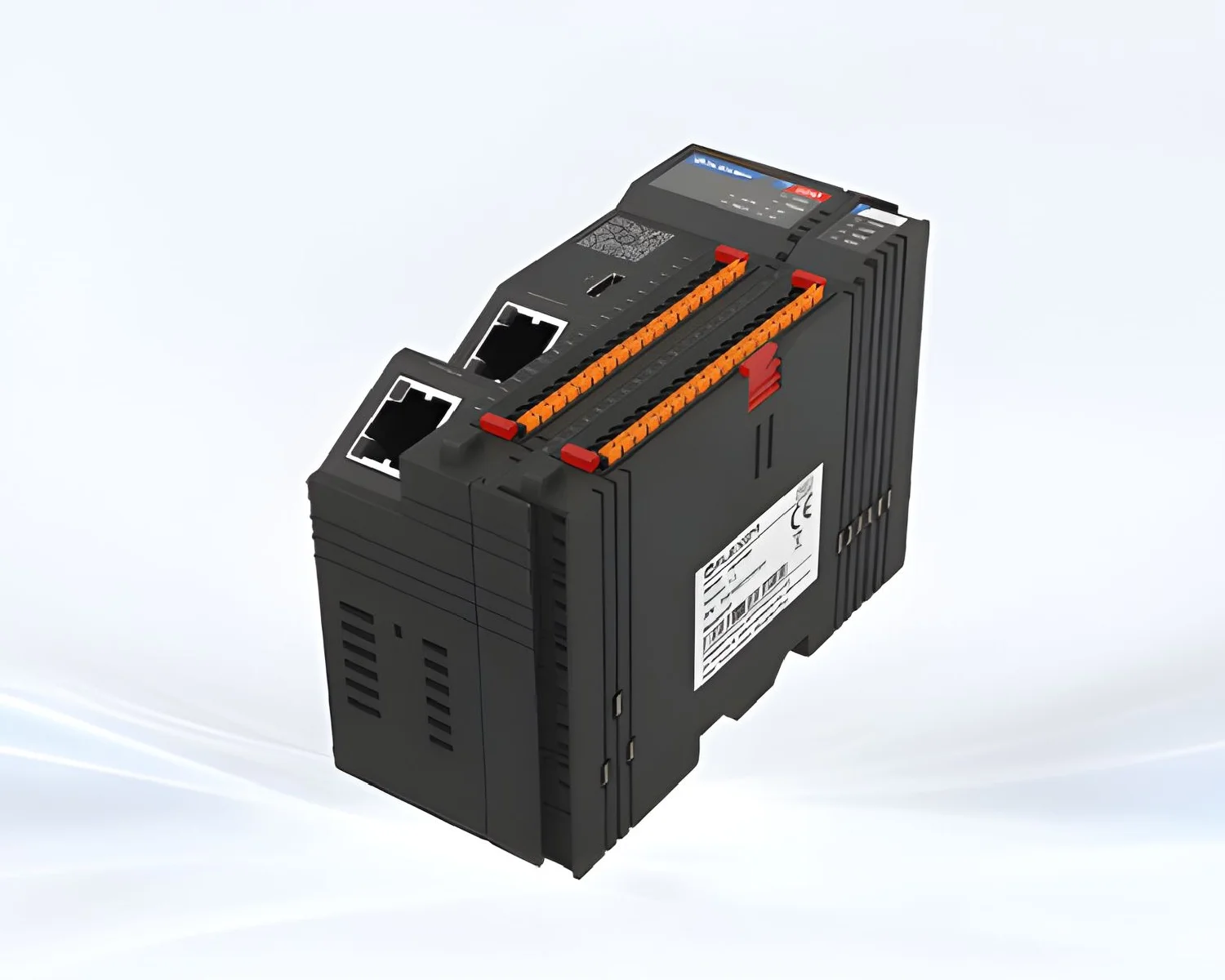

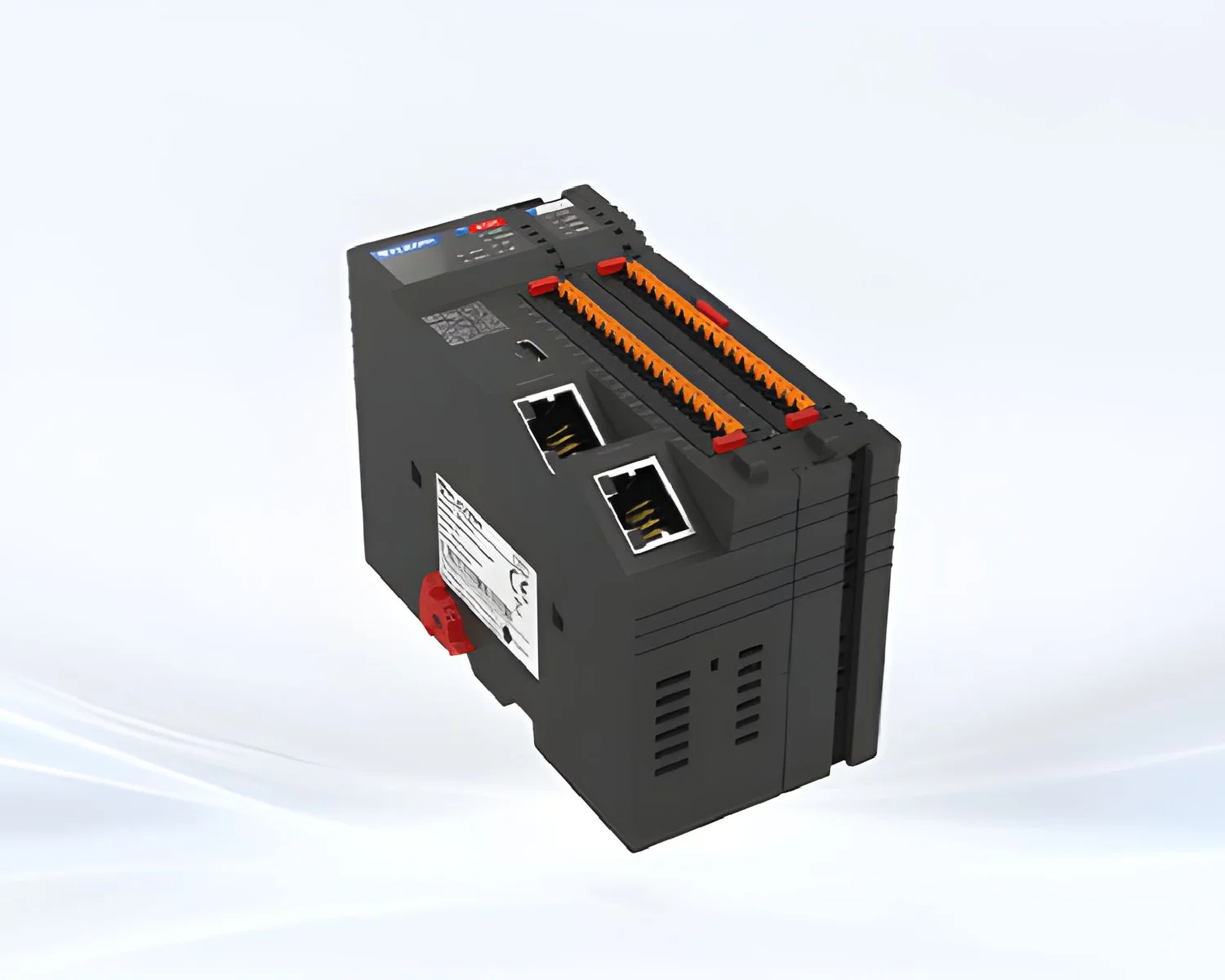

| Model | FR-ECAT |
| Power | 9~36VDC(normal 24VDC)Protection:overcurrent protection,anti-reverse connection protection |
| Power Consumption | 110mA@24Vdc |
| Isolation | Yes |
| Field Power | 22~28V (Normal 24VDC) |
| Field Power Current | Max DC 8A |
| Max Extension Module | 31 |
| Wire | Max.1.5mm²(AWG 16) |
| Installation | 35mm DIN ruler |
| Dimension(H*W*D) | 111*36*76 mm |
| Weight | 200g |
| operation temperature | -20~70℃ |
| Ambient humidity | 5%-95%non-condensing |
| Protection grade | IP20 |
| Protocol | EtherCAT |
| Process Data Area | Input:Max.1024 bytes,Output:Max.1024 bytes□ |
| Connector | 2*RJ45 |
| Speed | 10/100Mbps |
| Max Length | 100m |
