Description
Specification

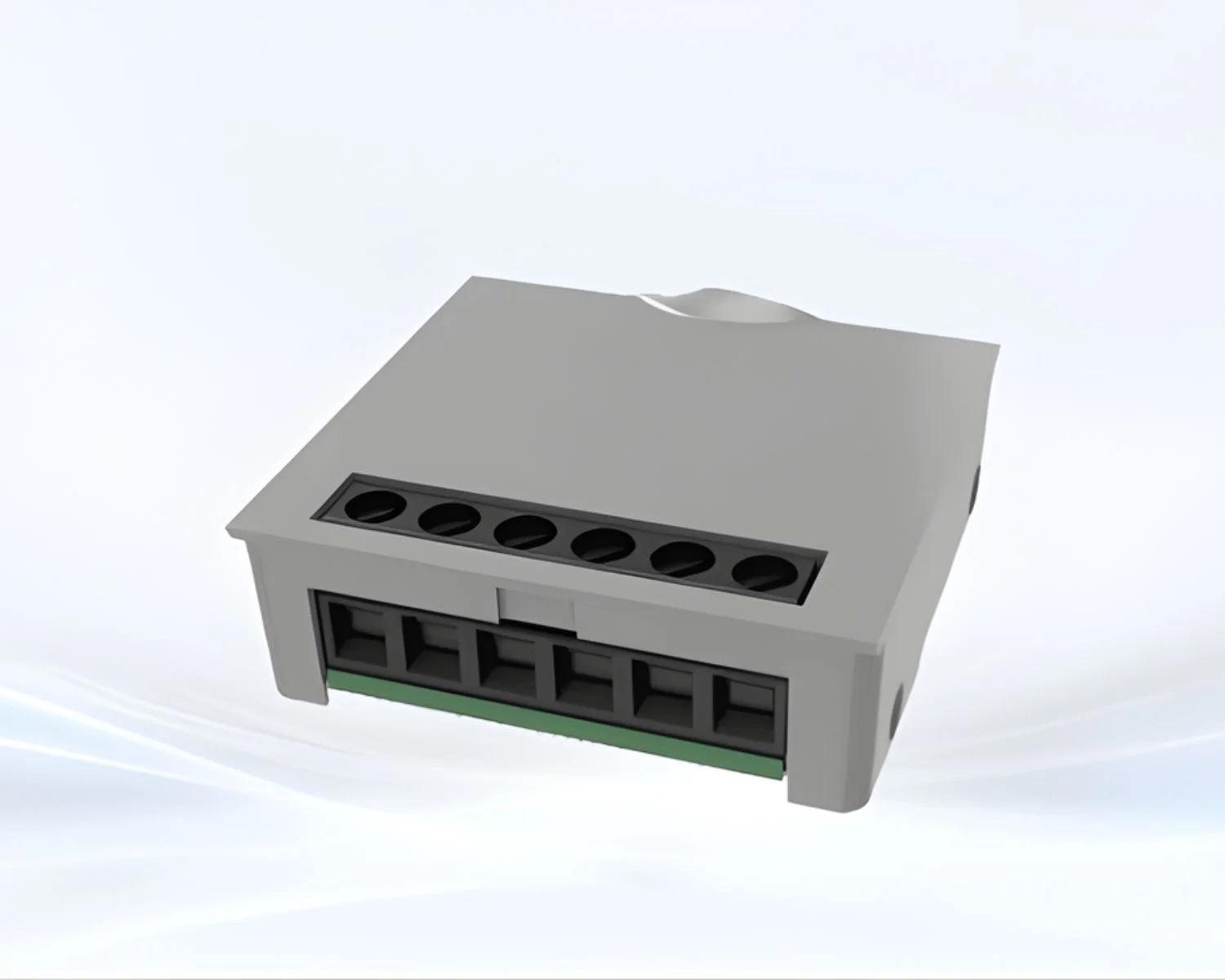

| Serial Board | ||
| Model | F5-BSC01 | F5-BSC02 |
| Description | Serial ports expansion board | |
| Channel | 1 | |
| Isolation | Non-isolation | lsolation |
| Ports | RS485/RS232 | |
| Protocol | RS485/232，baud rate: 4800-115200bps | |
| Power Supply | 5VDC –15%/+20%, 3.2W max. The main unit is provided internally without external input | |
| Wiring Strucutre | Non-removable terminal block | |
| Working Temperature | -10~60℃ | |
| Storage Temperature | -20~70℃ | |
| Ervironment Humidity | 10-90%RH (Non-condensing) | |
| Installation | CPU Front expansion board slot | |
| Dimension | 38mmx40mmx18mm | |
| Analog Expansion Board | |||
| Model | F5-BA0200B | F5-BA0200B | F5-BA0002B |
| Input | 2 | – | 1 |
| Output | – | 2 | 1 |
| Resolution | 12-bit | ||
| Input/Output Signal Range | Voltage: 0-10V; Current: 0-20mA/4-20mA | ||
| Full Range | Customized (0~4096) | ||
| Conversion Precision (full range) | ±1% | ±1% | |
| Maximum Signal Input | Voltage:30V Current 30mA | – | Voltage:30V Current 30mA |
| Impedance Input | Voltage>100K ohms; Current < 250ohms+5% | – | Voltage>100K ohms; Current < 250ohms+5% |
| Output Load Range | – | Voltage>2k ohms Current<500ohms | |
| Power Supply | 5VDC-15%/+20%, 3.2W max. The main unit is provided internally without external input | ||
| Wring Structure | Non-removable terminal block | ||
| Working Temperature | -10~60℃ | ||
| Storage Temperature | -20~70℃ | ||
| Environment Humidity | 5%~95%RH(Non-condensing) | ||
| Installation | CPU Front expansion board slot | ||
| Dimension | 38mmx40mmx18mm | ||
| Temperature sensor board | |
| Model | F5-BS0200P |
| Description | Resister temperature sensor input sensor |
| Input | 2 |
| Rated Power | ≤20mA (full load) |
| Input Sensor Type | Pt100、Ni100、Ni120、Cu50、Cu100 |
| Resolution | 0.1℃ |
| Measuring Precision(Under 25℃ Environment) | ±0.5% or ±1°C, take the larger value |
| Measuring Temp | ◆Pt100, Ni100, Ni120; PV ±1% or ±1°C, take the larger value |
| Temperature Range:-20℃~60° | ◆Cu50, Cu100: PV ±1% or ±1.5°C, take the larger value |
| Connector type | Screw terminal |
| Impedance Input | ≥1 MΩ |
| Cycle | <=100ms/channel |
| Minimum Value Input | 0.1°C |
| Supports out-of-range detection | Support |
| Support disconnection alarm | Support |
| Input Filtering | 0~10S (take 0.01s as one unit) |
| Measuring Range | ◆Pt100: –200~850°C |
| ◆Ni100: –60~180°C ◆Ni120: –60~180°C | |
| ◆ Cu50: -50~150°C | |
| ◆Cu100: -50~150°C | |
